DL-360 wheel drill rig for construction building
| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF |
| Min. Order: | 1 Piece/Pieces |
| Delivery Time: | 14-21 Days |
Basic Info
Model No.:DL-360
Certification:SGS, CE, ISO 9001:2008, Other
Condition:New
Motor:Other
Drill Hole Diameter:>300mm
Drill Hole Depth:<30m
Bit Type:Cone Bit
Drilling Way:Rotary
Type:Four-Wheel trailer
Color:Customized
Additional Info
Packaging:container
Productivity:10 set/month
Brand:Dingli
Transportation:Ocean,Land
Place of Origin:China
Supply Ability:10 units per month
Certificate:ISO CQC CE SGS
海关编码:8430509000
Port:Qingdao,Shanghai,Tianjin
Product Description

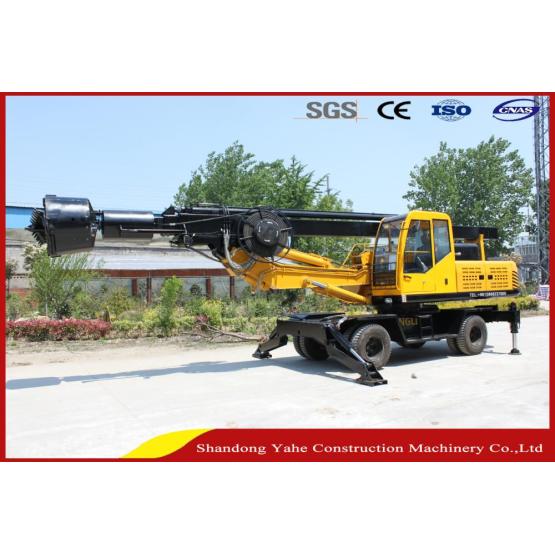

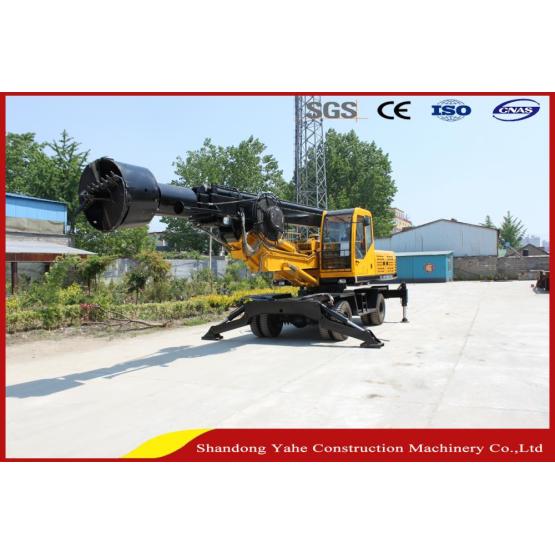

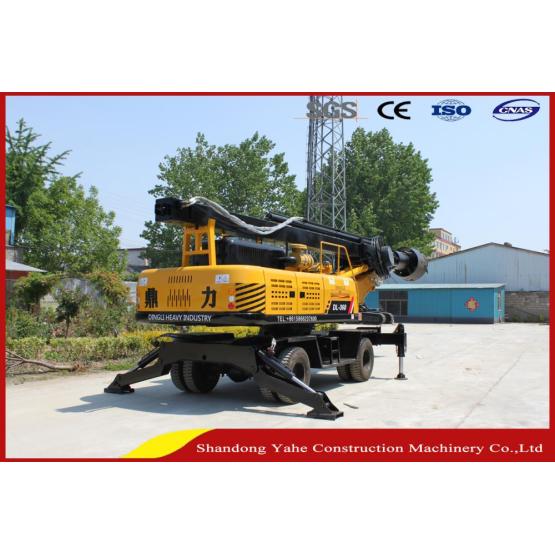

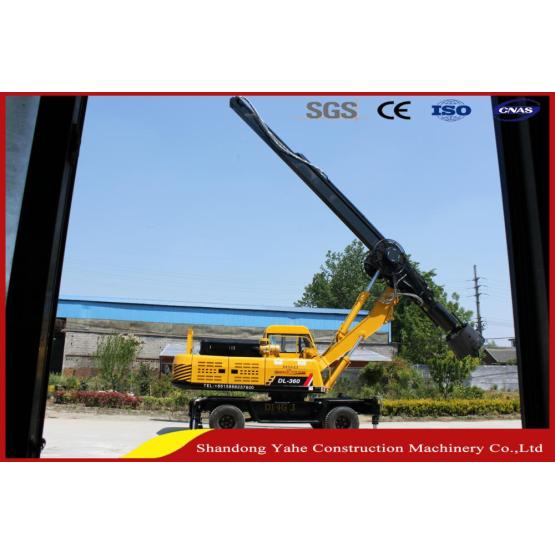

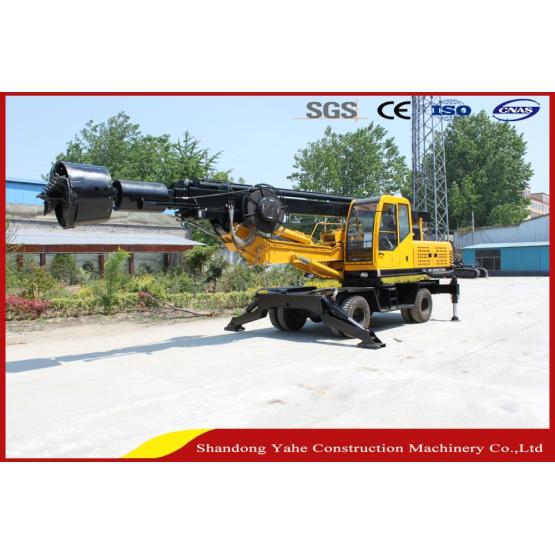

DL-360 wheel drill rig for construction building--The maximum drilling depth of this type of drilling rig is 20 meters, the drilling diameter is 500-1500MM, the body can achieve 360-degree rotation, equipped with wheeled four-wheel mechanical walking brake, the construction is more flexible, suitable for house construction, highway piling, our company has rich experience , The certificate is complete, more details are welcome for your consultation!
| Product Type | DL-360 |
| Chassis length.(mm) | 4700 |
| tyre model | 825-16 |
| Machine weight.(t) | 10-13 |
| Maximum drilling depth.(m) | 10 - 30（Optional) |
| Drilling diameter.(mm) | 500-1500 |
| Engine brand | Weichai |
| Engine Model | 4108/6105（Optional） |
| Engine rated power.(KW/rpm) | 85KW-126KW |
| Drive type | Four-wheel drive |
| Travelling mode | Mechanical |
| Maximum Torque of Power Head.(N.m) | 24000-30000 |
| Power head speed.(rpm) | 10 - 30 |
| Power head whether to provide custom | Yes |
| hydraul的最大工作压力ic system main pump.(MPa) | 25 |
| hydraul的最大工作压力ic system auxiliary pump.(MPa) | 12 |
| Maximum bow rate of the main pump hydraulic systen.(L/min) | 50*2 |
| Maximum bow rate of the auxiliary pump hydraulic systen.(L/min) | 16 |
| Maximum pressure of the pressurization system.(KN) | 80 |
| Maximum lifting force of the pressurization system.(KN) | 80 |
| Maximum travel pressure system.(m) | 20 |
| Maximum lifting force of the main winch.(KN) | 80 |
| Maximum pull-up speed of the main winch. (m/min) | 80 |
| Maximum lifting force of the auxiliary winch.(KN) | 15 |
| Maximum pull-up speed of the auxiliary winch.(m/min) | 50 |
| Maximum lifting power of the auxiliary winch.(t) | 1.5 |
| Left and right inclination angle of drilling mast.(°) | ±5 |
| Forward inclination angle of drilling mast.(°) | 4 |
| Maximum driving speed.(KM/h) | 35 |
| Maximum climbing angle.(°) | 30 |
| Overall width of working state.(mm) | 4000 |
| Overall length of transport status.(mm) | 10200 |
| Overall width of transport status.(mm) | 2200 |
| Overall height of transport status.(mm) | 3000 |
| Drill rod type | Square rod. pressurized type/self-pressure |
| Drill rod whether to provide custom | Yes |
| Drilling tools | 500-1500mm drilling bit、Drlling Barrel、Coring drill、Reaming drilling bit |
| Drilling tools whether to provide custom | Yes |
