Basic Info

Model No.:DL-360

Type:钻,轮式打桩机

Pressure Pile Driver Type:Hydraulic Pile Driver

Power Source:Diesel

Certification:SGS, CE, ISO 9001:2008

Condition:New

Pile Hammer Type:Diesel Hammer

Noise:With Noise

Color:Customized

Enginee Brand:Wechai6105

最大Torque Of Power Head:24000-30000

Power Head Speed:10-40rpm

Weight:14T

Tire:825-16

Chassis Length:4700mm

Drilling Diameter:500-1500mm

Depth:20m

Additional Info

Packaging:container

Productivity:10set/month

Brand:Yahe heavy industry

Transportation:Ocean,Land

Place of Origin:China

Supply Ability:10units per month

Certificate:ISO CQC CE SGS

海关编码:8430509000

Port:Qingdao,Shanghai,Tianjin

Product Description

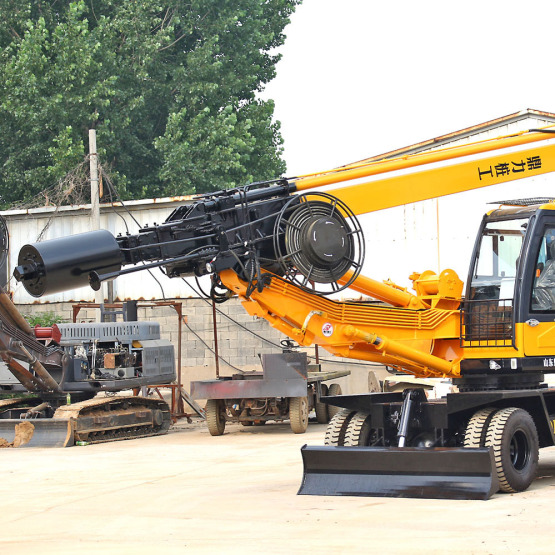

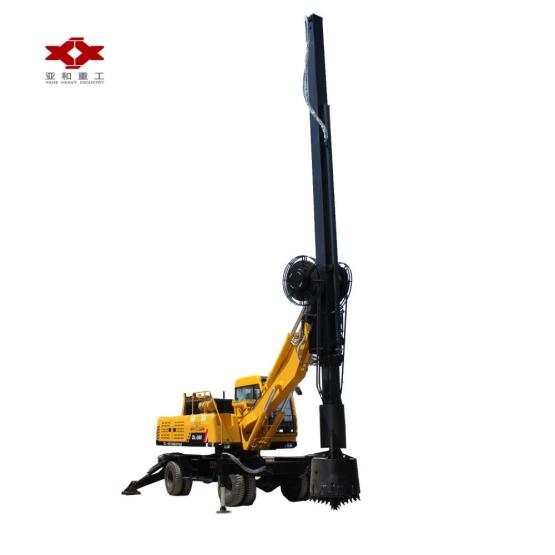

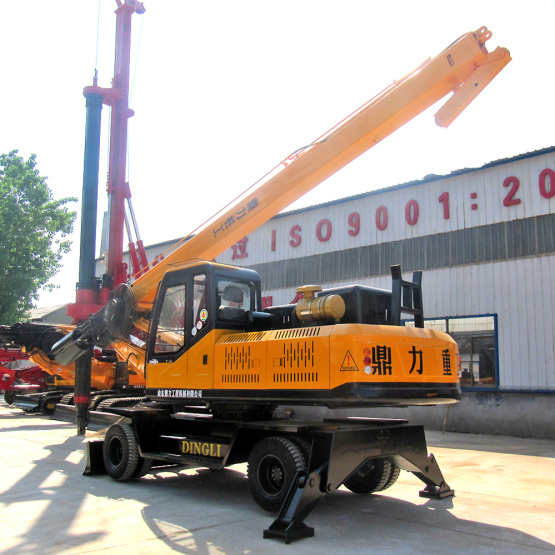

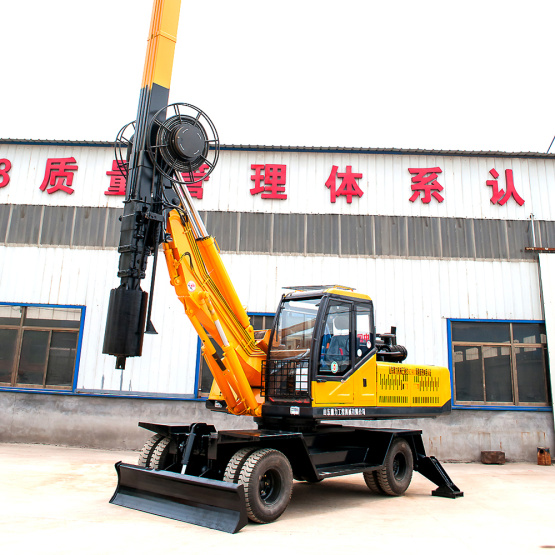

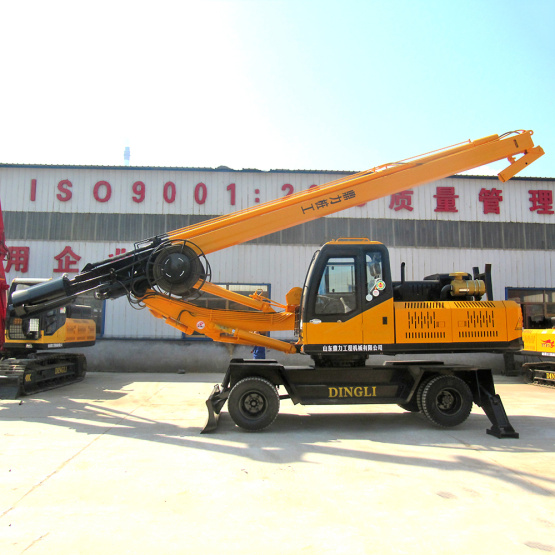

Small wheel rotary drilling rigmachineDL-360This is a multi-purpose small rotary drilling rig with excellent comprehensive construction ability. The maximum drilling depth is 20 M and the drilling diameter is 500-1500 MM. The design concept of the drilling rig is centered on the best overall construction capacity and labor-to-power ratio. Flexible and stable under construction, suitable for small-scale engineering, house construction projects, and small-scale water conservancy, energy, agriculture and animal husbandry development and construction. The fuselage welded steel structure materials all use the latest national standard models of China. In terms of power, it is equipped with a high-power brand engine and hydraulic system. The chassis adopts a four-wheel drive, two-axle, 8-wheel design structure. Stable driving conditions, abundant power torque, suitable for most road conditions. The drill pipe adopts a three-section, embedded design structure, which is flexible and highly efficient. This model has CE, ISO, SGS and other related product certifications. With more information welcome your inquiry.

Product Type	DL-360
Chassis length.(mm)	4700
tyre model	825-16
Machine weight.(t)	10-13
最大drilling depth.(m)	10 - 30（Optional)
Drilling diameter.(mm)	500-1500
Engine brand	Weichai
Engine Model	4108/6105（Optional）
Engine rated power.(KW/rpm)	85KW-126KW
Drive type	Four-wheel drive
Travelling mode	Mechanical
最大Torque of Power Head.(N.m)	24000-30000
Power head speed.(rpm)	10 - 30
Power head whether to provide custom	Yes
最大working pressure of hydraulic system main pump.(MPa)	25
最大working pressure of hydraulic system auxiliary pump.(MPa)	12
最大bow rate of the main pump hydraulic systen.(L/min)	50*2
最大bow rate of the auxiliary pump hydraulic systen.(L/min)	16
最大pressure of the pressurization system.(KN)	80
最大lifting force of the pressurization system.(KN)	80
最大travel pressure system.(m)	20
最大lifting force of the main winch.(KN)	80
最大pull-up speed of the main winch. (m/min)	80
最大lifting force of the auxiliary winch.(KN)	15
最大pull-up speed of the auxiliary winch.(m/min)	50
最大lifting power of the auxiliary winch.(t)	1.5
Left and right inclination angle of drilling mast.(°)	±5
Forward inclination angle of drilling mast.(°)	4
最大driving speed.(KM/h)	35
最大climbing angle.(°)	30
Overall width of working state.(mm)	4000
Overall length of transport status.(mm)	10200
Overall width of transport status.(mm)	2200
Overall height of transport status.(mm)	3000
Drill rod type	Square rod. pressurized type/self-pressure
Drill rod whether to provide custom	Yes
Drilling tools	500-1500mm drilling bit、Drlling Barrel、Coring drill、Reaming drilling bit
Drilling tools whether to provide custom	Yes
