Hydraulic Excavator Ground Hole Drilling Rig Machine
| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF |
| Min. Order: | 1 Piece/Pieces |
| Delivery Time: | 14-21 Days |
Basic Info
Model No.:DR-120
Type:Drill, Crawler
Pressure Pile Driver Type:Hydraulic Pile Driver
Power Source:Diesel
Certification:SGS, CE, ISO 9001:2008
Condition:New
Color:Customized
Maximum Torque Of Power Head:120kn.m
Enginee Brand:Wechai/Cummins
Power Head Speed:10-40rpm
Weight:26t
Drill Rod Type:Kelly Bar
Drilling Diameter:500-1600mm
Chassis Length:4200mm
Track Width:600mm
Additional Info
Packaging:customized
Productivity:10 set/month
Brand:Yahe heavy industry
Transportation:Ocean,Land
Place of Origin:China
Supply Ability:10 units per month
Certificate:ISO CQC CE SGS
海关编码:8430509000
Port:Qingdao,Shanghai,Tianjin
Product Description

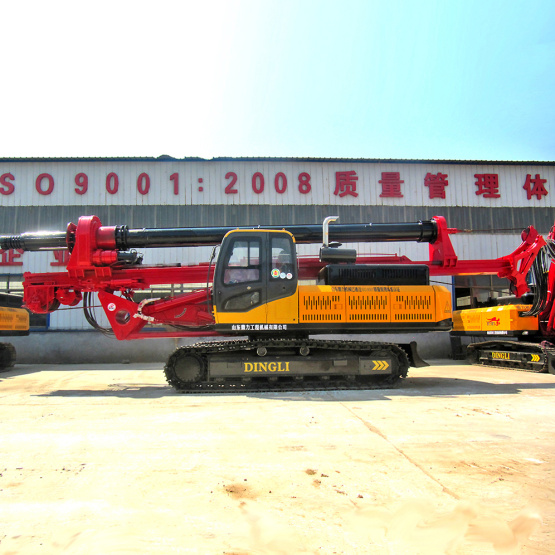

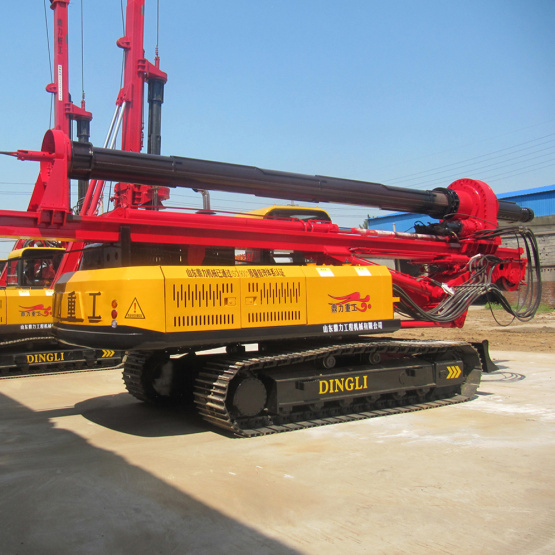

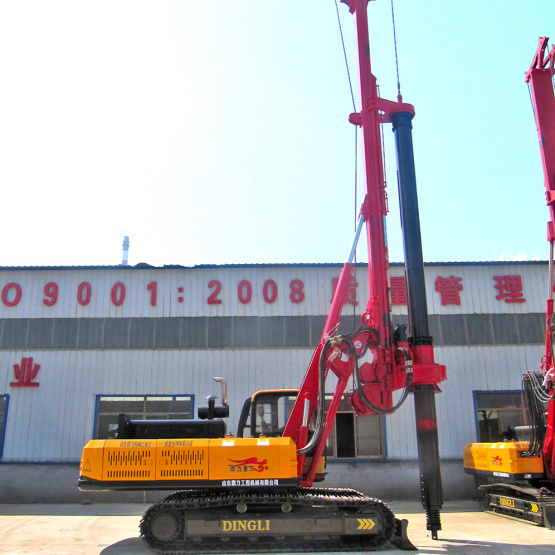

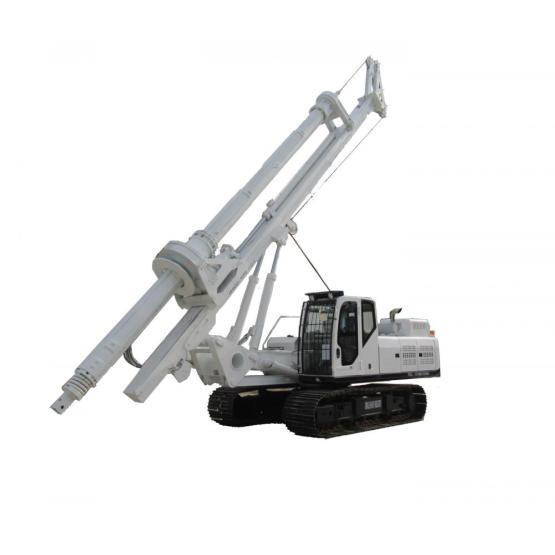

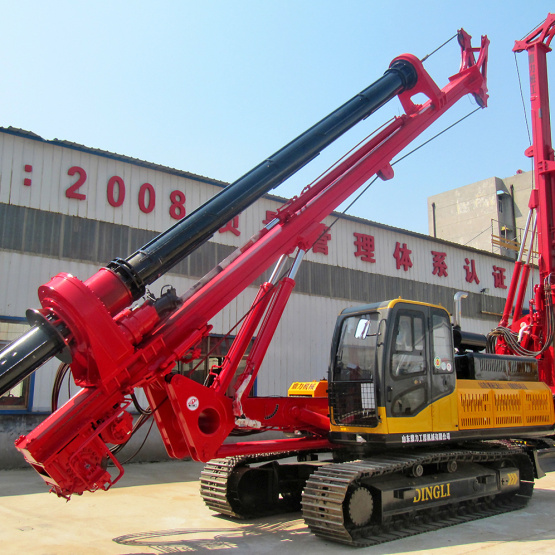

Hydraulic ExcavatorGround Hole Drilling Rig Machine是一种多功能旋转钻机,装备with Kelly drill rods, multi-speed variable speed bi-directional rotation. The maximum drilling depth is 30M, the drilling diameter is 500-1600MM, equipped with Cummins high-power water-cooled turbocharged engine, and Kawasaki hydraulic transmission system. Rotary drilling rigs rely on a high-strength tracked chassis as a carrier. Stable driving and strong power, can climb 30-degree high slopes to achieve self-loading. The rig drill pipe has an automatic vertical adjustment function and is equipped with an auxiliary hoist to assist in lifting construction equipment and facilities. The cab is spacious and comfortable, equipped with an advanced visual operating system, and clearly understands the current construction conditions through the LCD display. This drilling rig has high construction efficiency, stable work, precise control, low power consumption, and easy maintenance. The company is a design research and development company. All products are developed and manufactured by our company. The company supports OEM product customization. For more information welcome your consultation visit.
| Product Type | DR-120 |
| Chassis length.(mm) | 4200 |
| Track width.(mm) | 600 |
| Machine weight.(t) | 26 |
| Maximum drilling depth.(m) | 30 |
| drilling diameter.(mm) | 500-1600 |
| Engine brand | Yuchai/Weichai/Cummins（Optional） |
| Engine rated power.(KW/rpm) | 126KW |
| Maximum torque of power head.(KN.m) | 120 |
| Power head speed.(rpm) | 10-50 |
| 液压系统最大工作压力tem main pump.(MPa) | 30 |
| 液压系统最大工作压力tem auxiliary pump.(MPa) | 12 |
| Maximum bow rate of the main pump hydraulic system.(L/min) | 80*2（Optional) |
| Maximum bow rate of the auxiliary pump hydraulic system.(L/min) | 16 |
| Maximum pressure of the pressurization system.(KN) | 100 |
| Maximum lifting force of the pressurization system.(KN) | 80 |
| Maximum travel pressure system.(mm) | 3000 |
| Maximum lifting force of the main winch.(KN) | 150 |
| Maximum pull-up speed of the main winch. (m/min) | 50 |
| Maximum lifting force of the auxiliary winch.(KN) | 15 |
| Maximum pull-up speed of the auxiliary winch.(m/min) | 50 |
| Left and right inclination angle of drilling mast(°) | ±5 |
| Forward and backward inclination angle of the drilling mast. (°) | 5/90 |
| Maximum driving speed(KM/h) | 1.5 |
| Maximum climbing angle.(°) | 25 |
| Maximum Driving torque.(KN.m) | 40000-45000 |
| Overall width of working state.(mm) | 2800 |
| Overall length of transport status.(mm) | 11500 |
| Overall width of transport status.(mm) | 2800 |
| Overall height of transport status.(mm) | 3400 |
| Drill rod type | Machine Lock |
| Drill rod whether to provide custom | Yes |
| drill tools | 500-1800mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit |
