Basic Info

Model No.:DR-180

Type:Drill, Crawler

Pressure Pile Driver Type:Hydraulic Pile Driver

Power Source:Diesel

Certification:SGS, CE, ISO 9001:2008

Condition:New

Pile Hammer Type:Diesel Hammer

Noise:With Noise

Color:Customized

Enginee Brand:Cummins

Maximum Torque Of Power Head:180kn.m

Power Head Speed:10-40rpm

Weight:46t

Depth:50m

Drilling Diameter:600-2000mm

Drill Rod Type:Kelly Bar

Chassis Length:5200mm

Additional Info

Packaging:container

Productivity:10套/月

Brand:Yahe heavy industry

Transportation:Ocean,Land

Place of Origin:China

Supply Ability:10个单位per month

Certificate:ISO CQC CE SGS

海关编码:8430509000

Port:Qingdao,Tianjin,Shanghai

Product Description

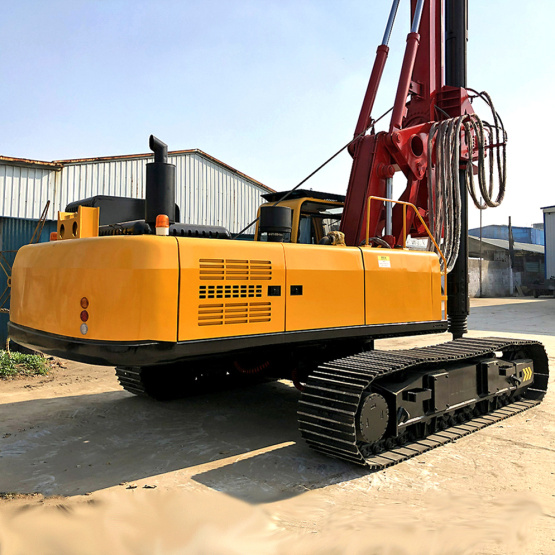

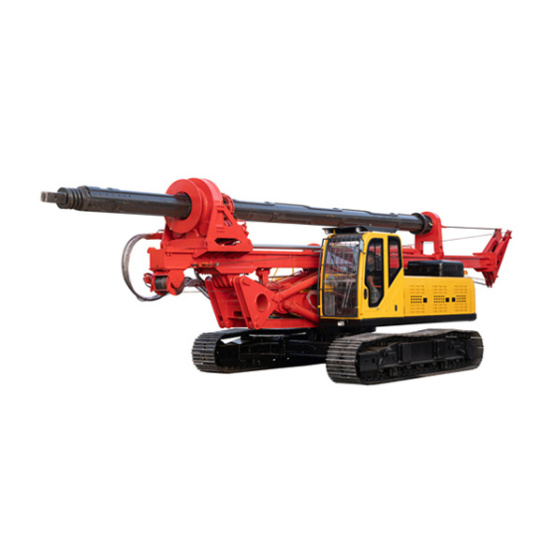

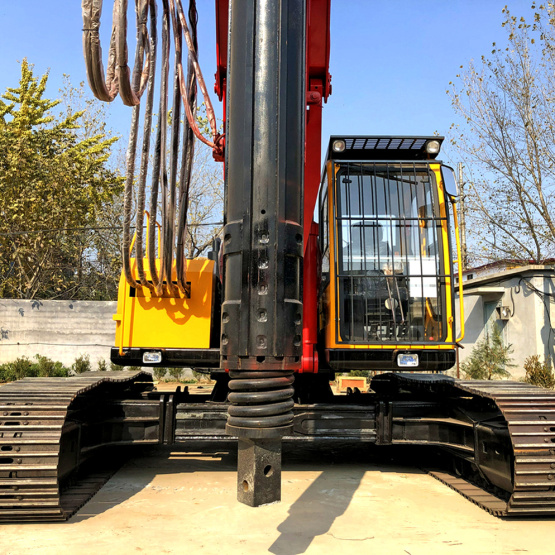

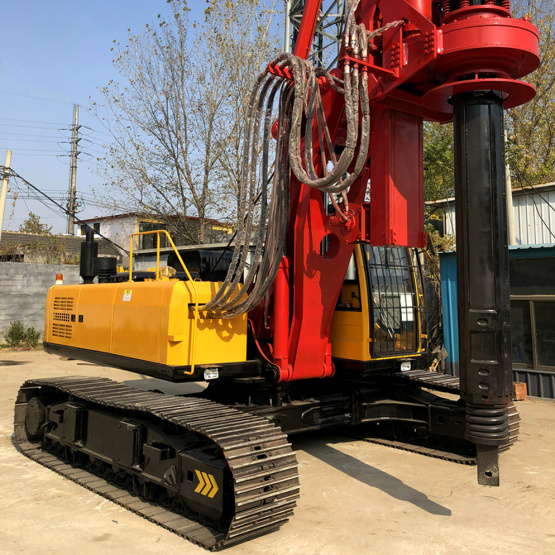

Hydraulic Bore Rotary Drilling Pile Rig MachineDR-180is a hydraulic and diesel heavy-duty civil engineering construction pile drilling machine. He has a superior retractable rail crawler chassis that can achieve two-way free expansion and contraction of the chassis and adjust the width of the chassis to adjust the center of gravity of the pile drilling machine. Maximize efficiency. The modified rig is equipped with advanced visual control system and Kawasaki hydraulic system. It is equipped with high-power Cummins diesel turbocharged engine, which can guarantee sufficient work and driving power. This machine ground construction rig can achieve high off-road mobility and 30-degree climbing ability to adapt to road traffic and construction conditions in different environments. The drill pipe adopts a rotary machine lock bar design, which responds quickly to switching between stationary and construction mode. The mast assembly auxiliary hoist can hoist construction equipment and facilities. The maximum torque of the power head is 180KNm. The maximum drilling depth of this model is 45M, and the diameter of the turning hole ranges from 600-2200MM. Suitable for medium and large pile foundation engineering, drilling engineering, etc. The company is a R & D and production enterprise with more than 25 years of industry experience and technology accumulation. The products produced have obtained CE / SGS / ISO and other proDR-180duct quality certifications. For more information, welcome your letter and visit.

Product Type	DL-180
Chassis length.(mm)	5400
tyre model	900-20
Machine weight.(t)	8-10
Maximum drilling depth.(m)	10 - 30（Optional）
Drilling diameter.(mm)	500-1500
Engine brand	Weichai
Engine Model	4108/6105（Optional）
Engine rated power.(KW/rpm)	85KW-126KW
Drive type	Two-wheel drive
Travelling mode	Mechanical
Maximum Torque of Power Head.(N.m)	24000-30000
Power head speed.(rpm)	10 - 30
Power head whether to provide custom	Yes
hydraul的最大工作压力ic system main pump.(MPa)	25
hydraul的最大工作压力ic system auxiliary pump.(MPa)	12
Maximum bow rate of the main pump hydraulic systen.(L/min)	50*2
Maximum bow rate of the auxiliary pump hydraulic systen.(L/min)	16
Maximum pressure of the pressurization system.(KN)	80
Maximum lifting force of the pressurization system.(KN)	80
Maximum travel pressure system.(m)	15
Maximum lifting force of the main winch.(KN)	80
Maximum pull-up speed of the main winch. (m/min)	80
Maximum lifting force of the auxiliary winch.(KN)	15
Maximum pull-up speed of the auxiliary winch.(m/min)	50
Maximum lifting power of the auxiliary winch.(t)	1.5
Left and right inclination angle of drilling mast.(°)	±5
Forward inclination angle of drilling mast.(°)	4
最大行驶速度(公里/小时)。	35
Maximum climbing angle.(°)	30
Overall width of working state.(mm)	2350
Overall length of transport status.(mm)	10200
Overall width of transport status.(mm)	1950
Overall height of transport status.(mm)	3300
Drill rod type	Square rod. pressurized type/self-pressure
Drill rod whether to provide custom	Yes
Drilling tools	500-1200mm drilling bit、Drlling Barrel、Coring drill、Reaming drilling bit
Drilling tools whether to provide custom	Yes
